2 Drum, 2 Speed

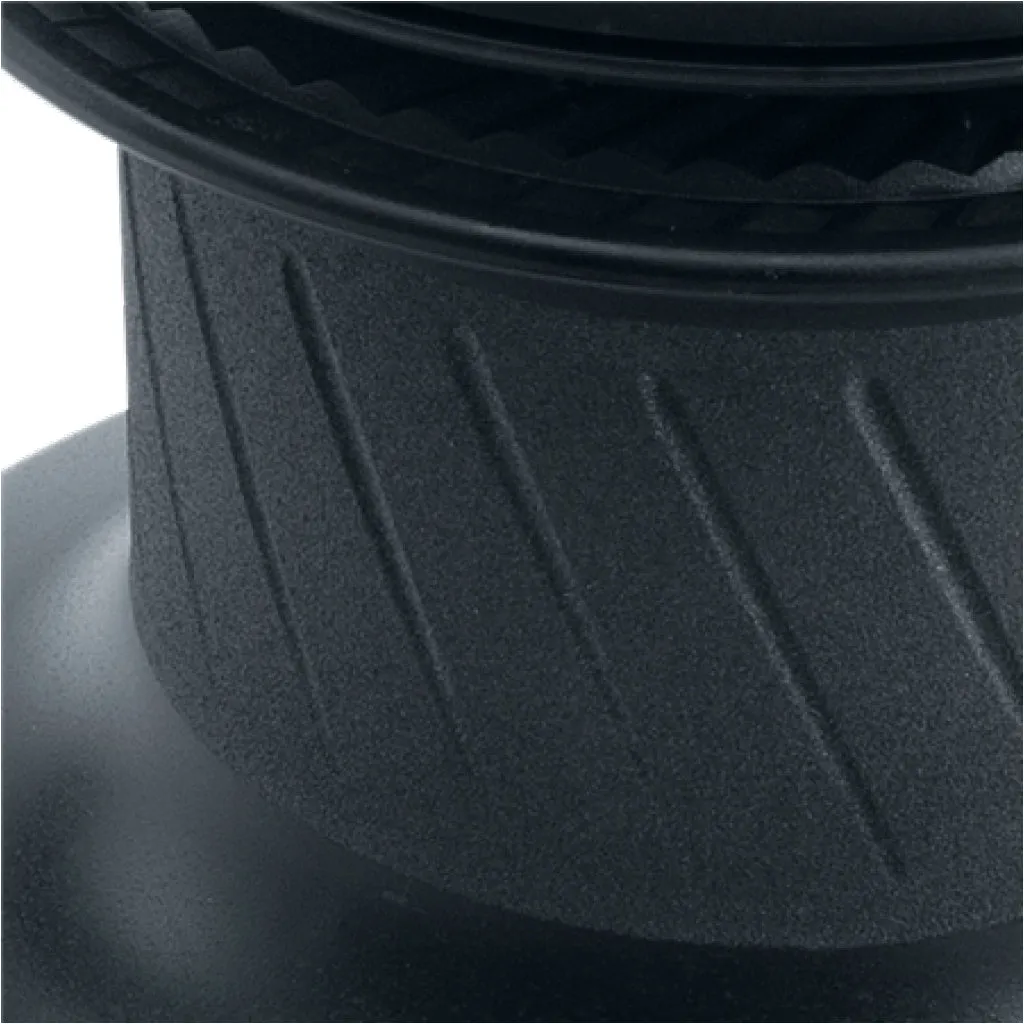

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line.

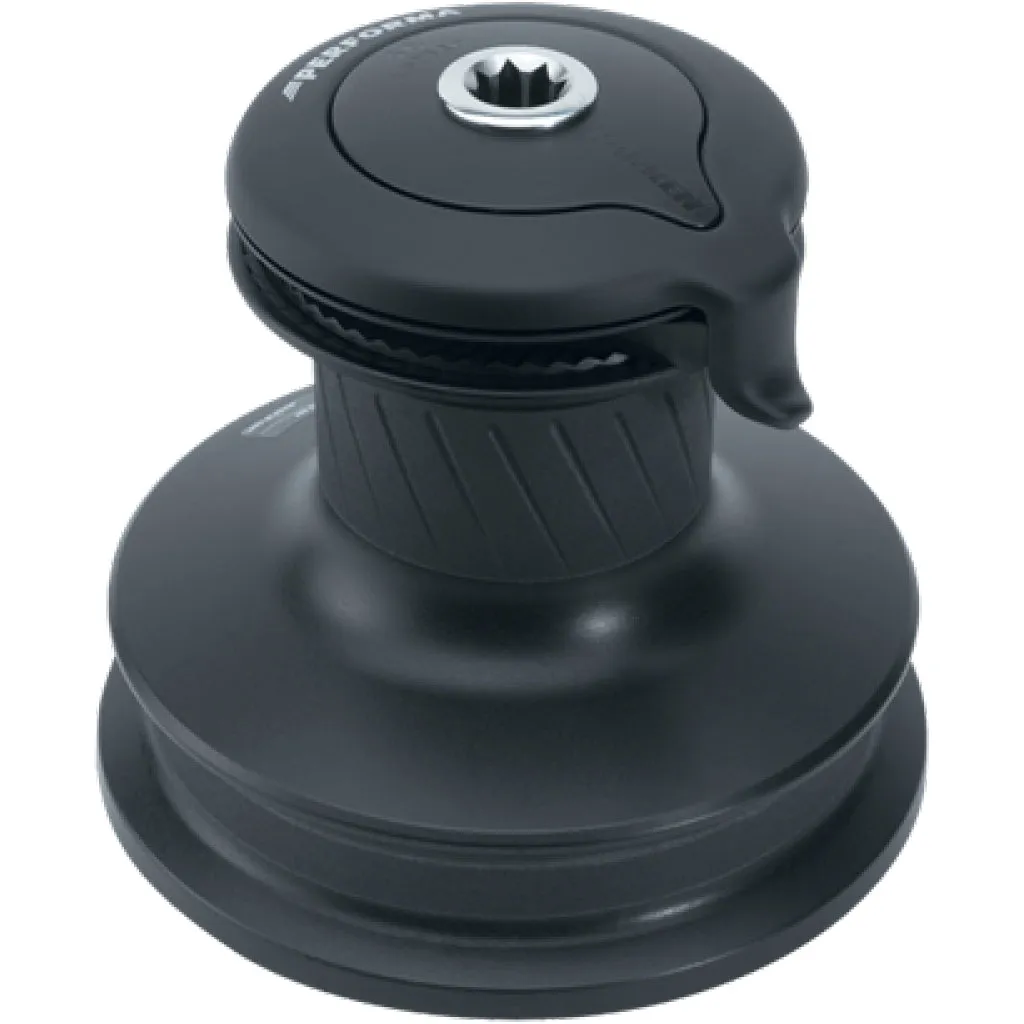

The Quattro model is an all-in-one aluminum winch used on boats that require extremely fast winches to handle large asymmetrical spinnakers, but also need power to trim the genoa upwind. The 2-speed Quattro features two drum diameters and four line speeds.

Specifications

• Configuration: Quattro
• Speed: 2
• Drum Ø (mm): 80 mm
• Drum Ø (in): 3 1/8 in
• Drum Ø lower (mm): 154 mm
• Drum Ø lower (in): 6 1/16 in
• Base Ø (mm): 180 mm
• Base Ø (in): 7 1/8 in
• Height (mm): 175 mm
• Height (in): 6 7/8 in
• Weight (kg): 4.6 kg
• Weight (lb): 10.2 lb
• Line entry height (mm): 82 mm
• Line entry height (in): 3 1/4 in
• Line entry height lower (mm): 24 mm
• Line entry height lower (in): 15/16 in
• Minimum line Ø (mm): 8 mm
• Minimum line Ø (in): 5/16 in
• Maximum line Ø (mm): 12 mm
• Maximum line Ø (in): 1/2 in
• Fastener circle (in): 4 7/8 in
• Fastener circle (mm): 123 mm
• Fasteners (mm): M6 HH, M6 SH mm
• Fasteners (in): 1/4 SH in
• Number of fasteners: 5
• Gear ratio - 1: 2.13
• Gear ratio - 2: 6.28
• Power ratio - 1: 13.50
• Power ratio - 2: 39.90
